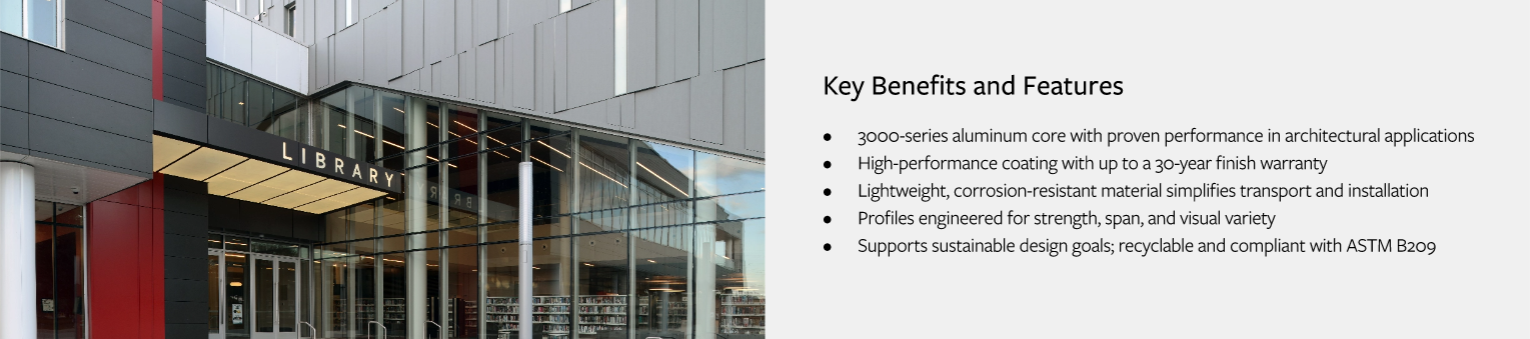

Reynoclad® profiled aluminum panels from Arconic Architectural Products (AAP) provide a high-performance solution for contemporary building exteriors and interiors. Crafted from durable 3000-series aluminum and available in a range of architectural profiles, including ribbed, corrugated, and flush options, Reynoclad® panels combine aesthetics with structural reliability.

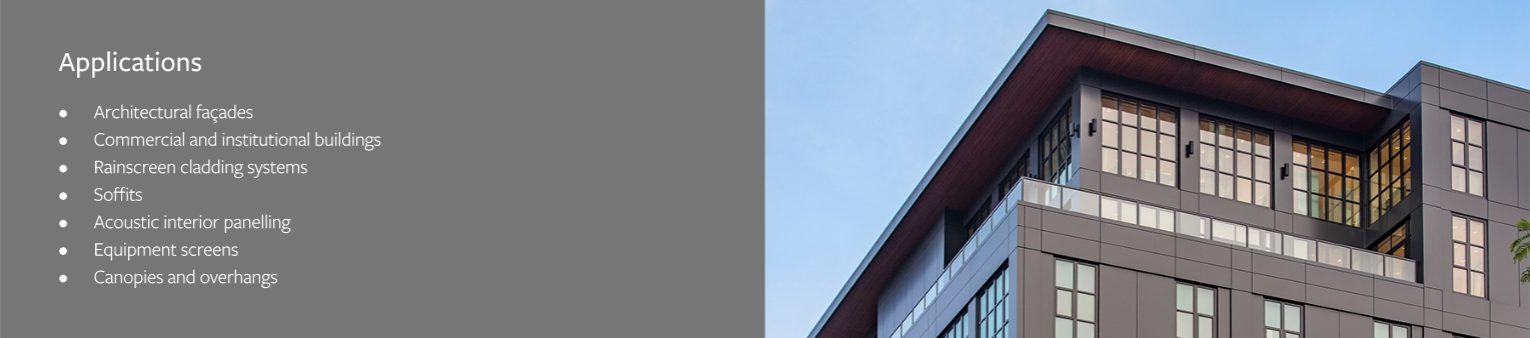

Engineered for versatility and performance, these panels are ideal for wall cladding, screening, and acoustical treatments. Each system is supported by a durable finish and a streamline installation process.
Engineered for versatility and performance, these panels are ideal for wall cladding, screening, and acoustical treatments. Each system is supported by a durable finish and a streamline installation process.
Product Profiles

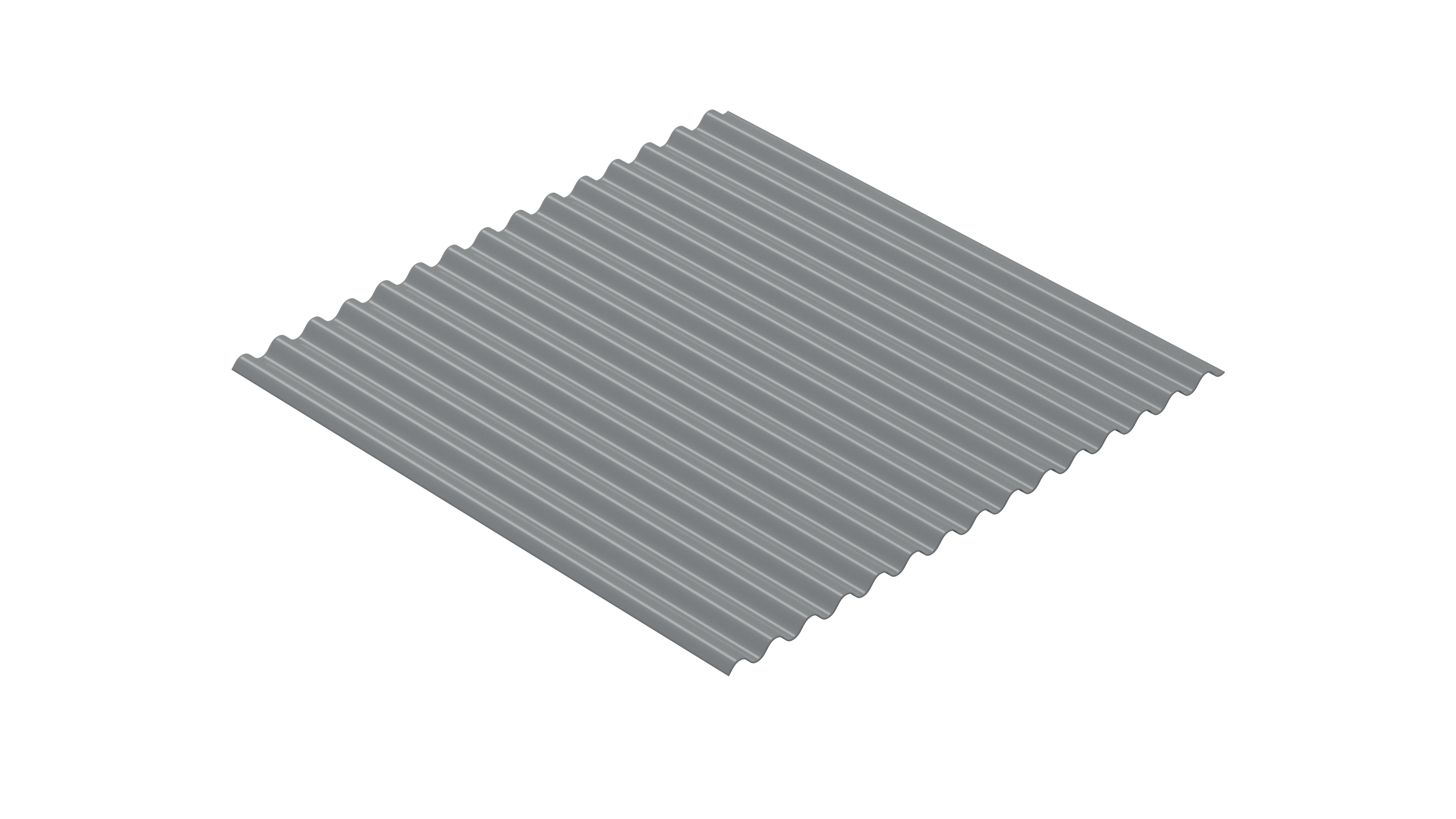

3/4" Lap Corrugated Panel
A classic corrugated exposed-fastener profile ideal for both siding and acoustical applications. Offers exceptional negative load capability for areas with high wind pressures.
- Panel Coverage: 34 2/3"
- Rib Pitch: 2.67"
- Profile Depth: 0.875"
- Thickness: 0.040"
- Weight: 0.62 lb/ft2
- Length Range: 5' - 20'
- Finish Warranty: Up to 30-years

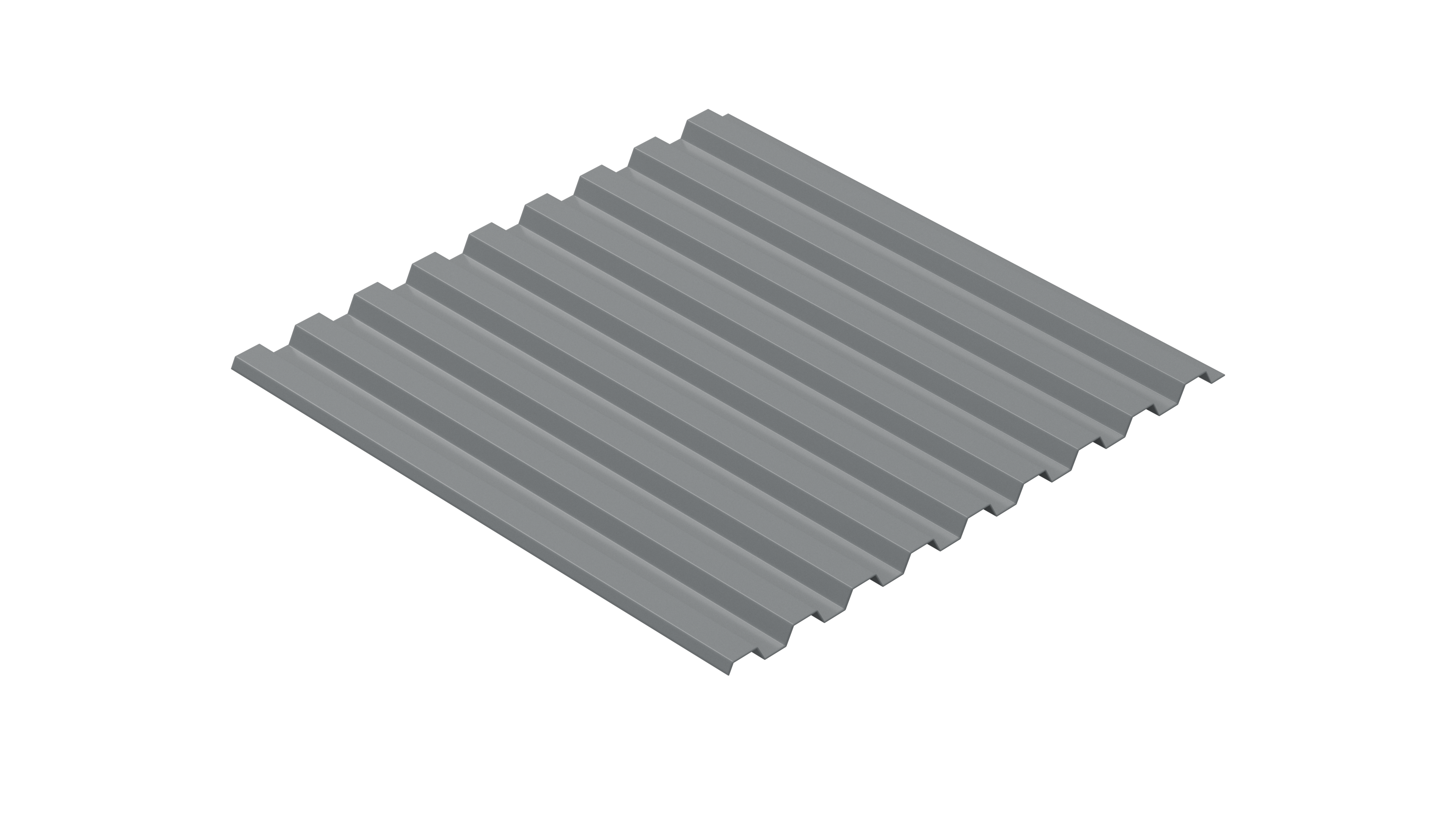

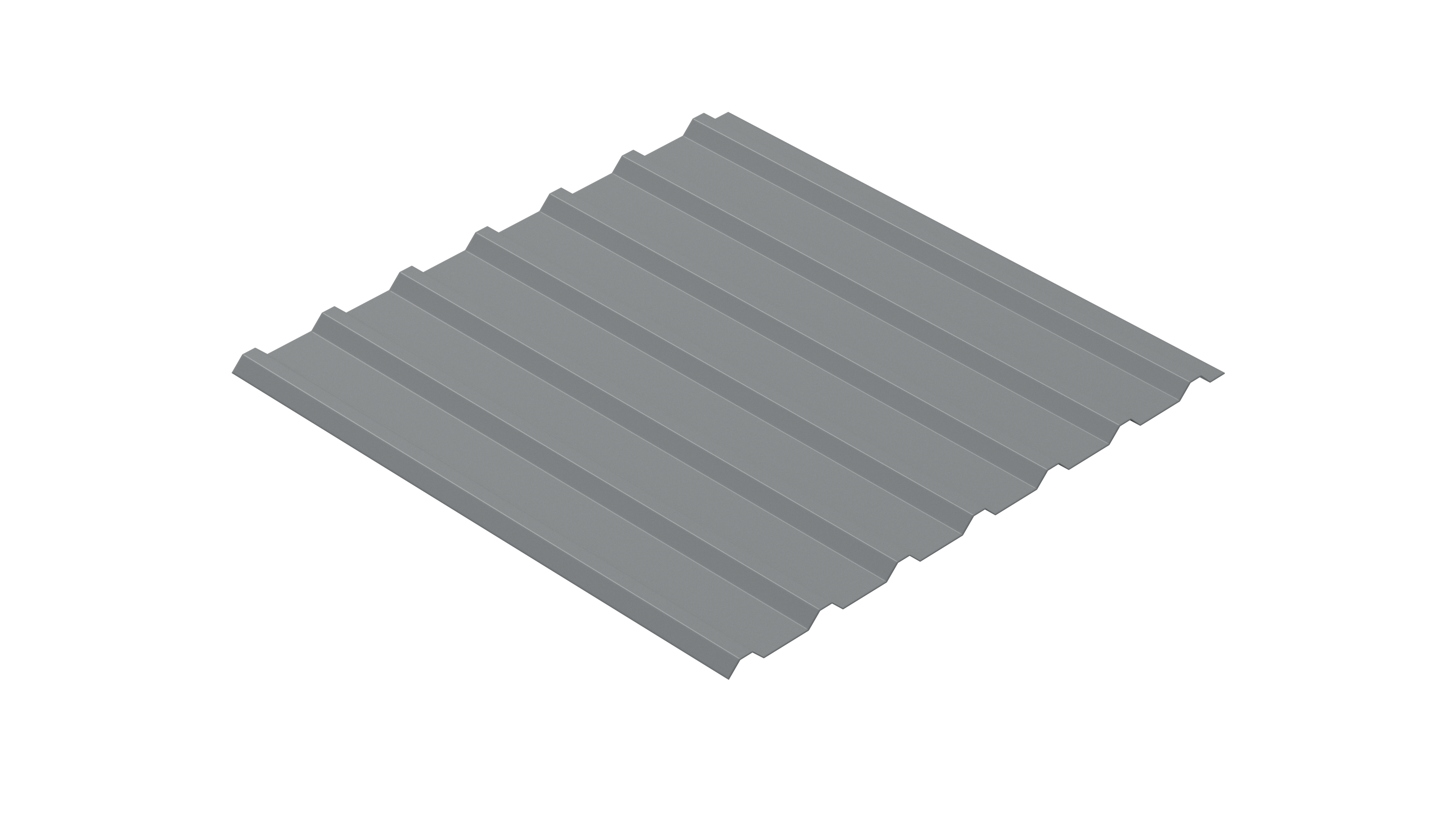

4" Rib Panel
A durable, exposed-fastener panel with deep ribs and a strong architectural profile. Suitable for horizontal or vertical siding installations.
- Panel Coverage: 36"
- Rib Pitch: 4"
- Profile Depth: 1"
- Thickness: 0.040"
- Weight: 0.62 lb/ft2
- Length Range: 6' - 45'
- Finish Warranty: Up to 30-years
4HC Concealed Fastener Panel
A sleek horizontal concealed-fastener system, ideal for modern architectural facades. Available with flush or standoff clip attachments for flexible design.
- Panel Coverage: 16"
- Rib Pitch: 4"
- Profile Depth: 7/8"
- Thickness: 0.040"
- Weight: 0.70 lb/ft2
- Length Range: Up to 20'
- Attachment Options: Clip System Standard (Extended Leg available upon request)
- Finish Warranty: Up to 30-years

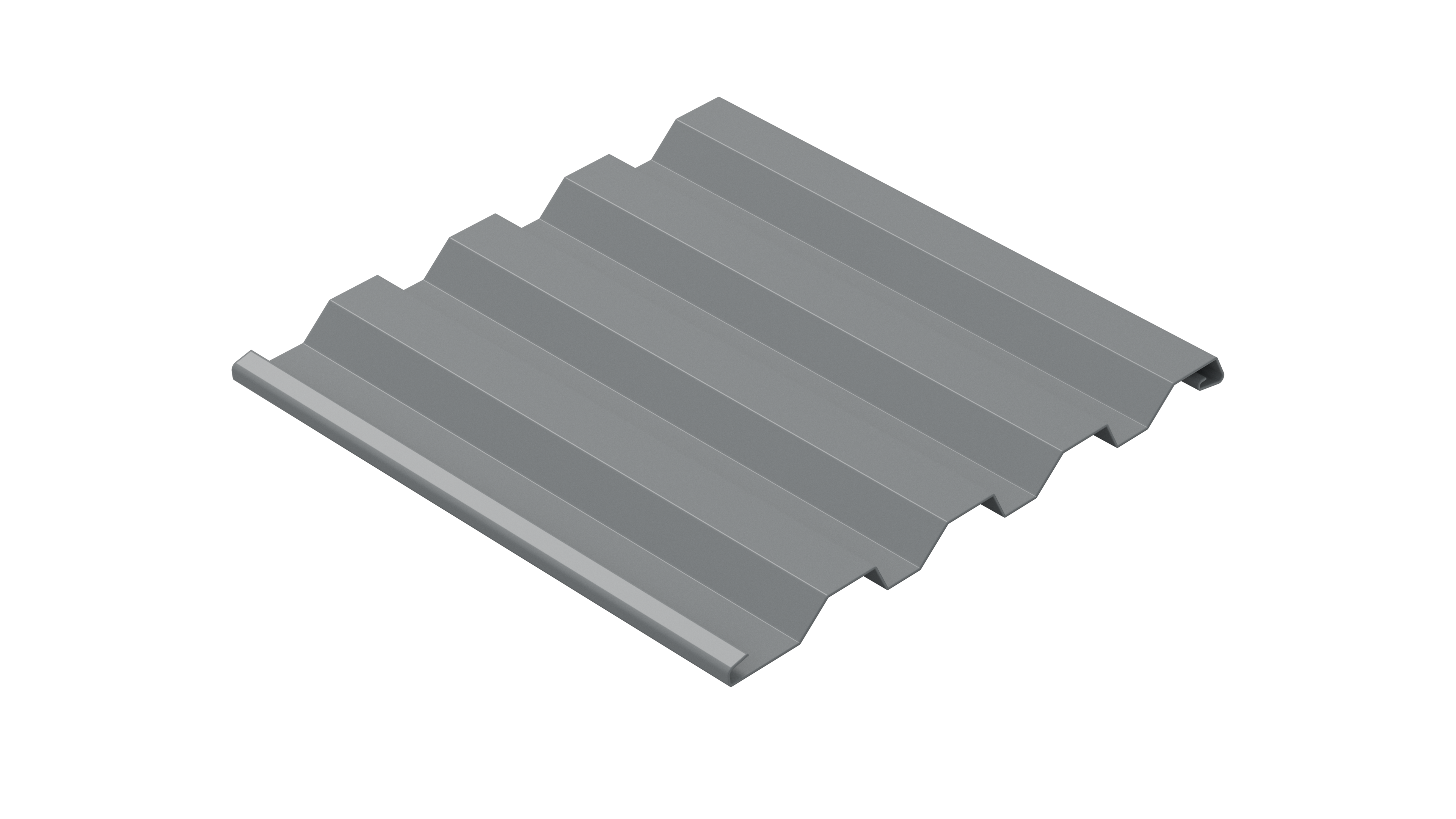

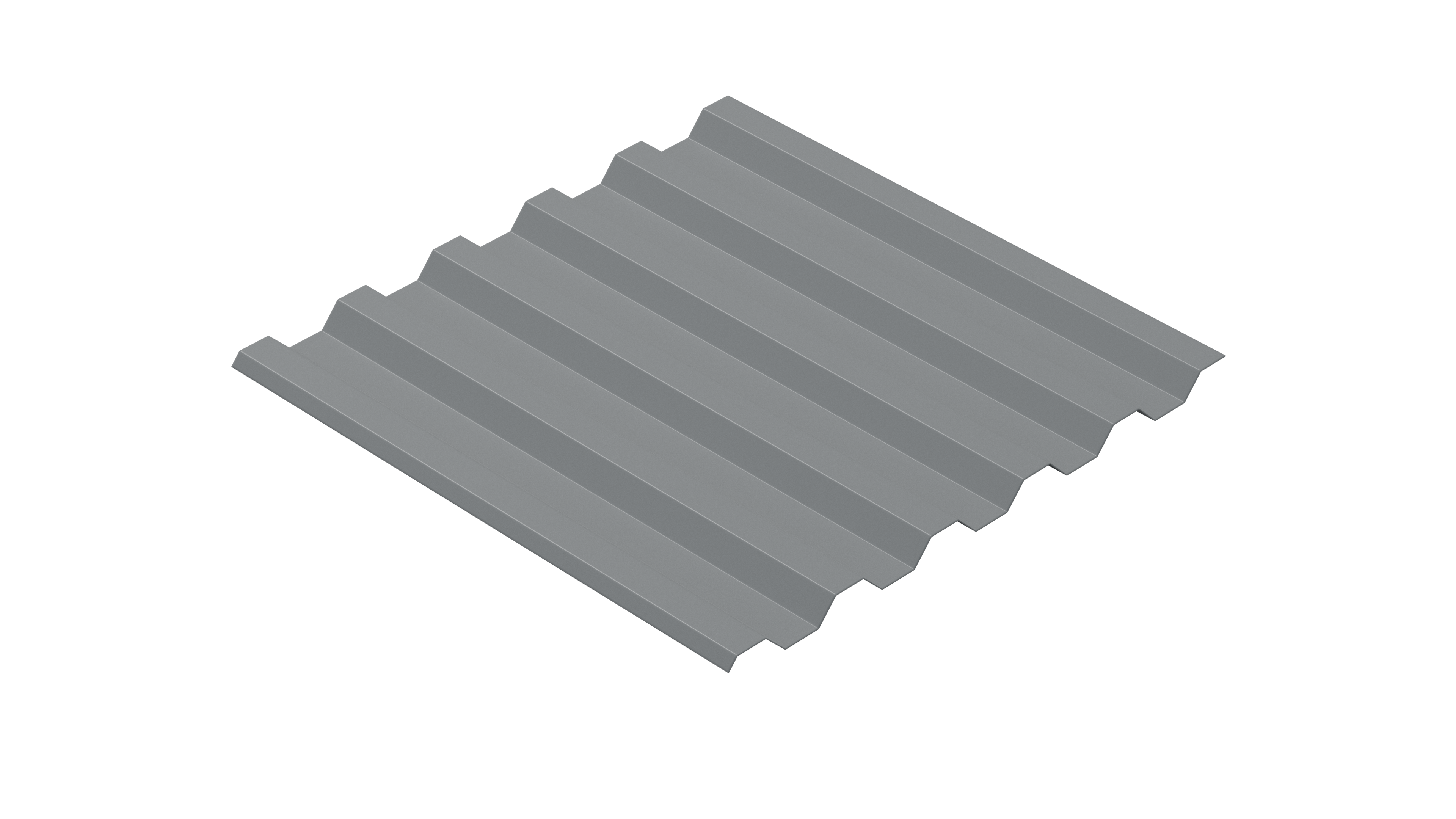

7.2" Rib Panel
An exposed fastener panel designed for projects requiring long spans and high wind load resistance. Ideal for industrial, commercial, and institutional buildings.
- Panel Coverage: 36"
- Rib Spacing: 7.2"
- Profile Depth: 1.5"
- Thickness: 0.040"
- Weight: 0.62 lb/ft2
- Length Range: 5' - 20'
- Finish Warranty: Up to 30-years

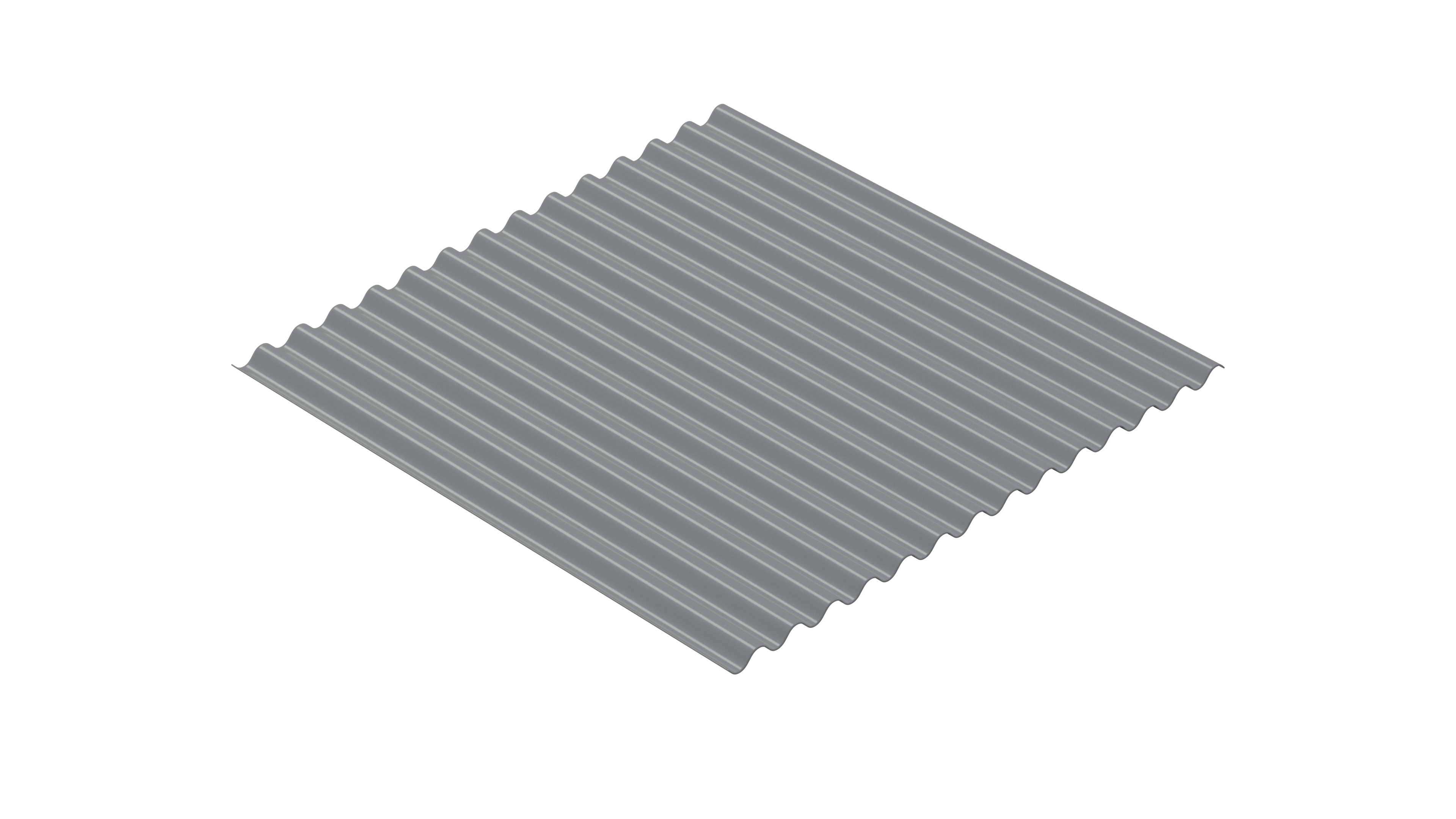

7/8" Corrugated Panel
A versatile corrugated exposed-fastener profile with excellent negative load capability, suitable for wall applications. Perforated options are available for equipment screens or interior acoustical performance.
- Panel Coverage: 37.33"
- Rib Pitch: 2.67"
- Profile Depth: 0.875"
- Length Range: 5'-45'
- Thickness: 0.040"
- Weight: 0.62 lb/ft2
- Finish Warranty: Up to 30-years

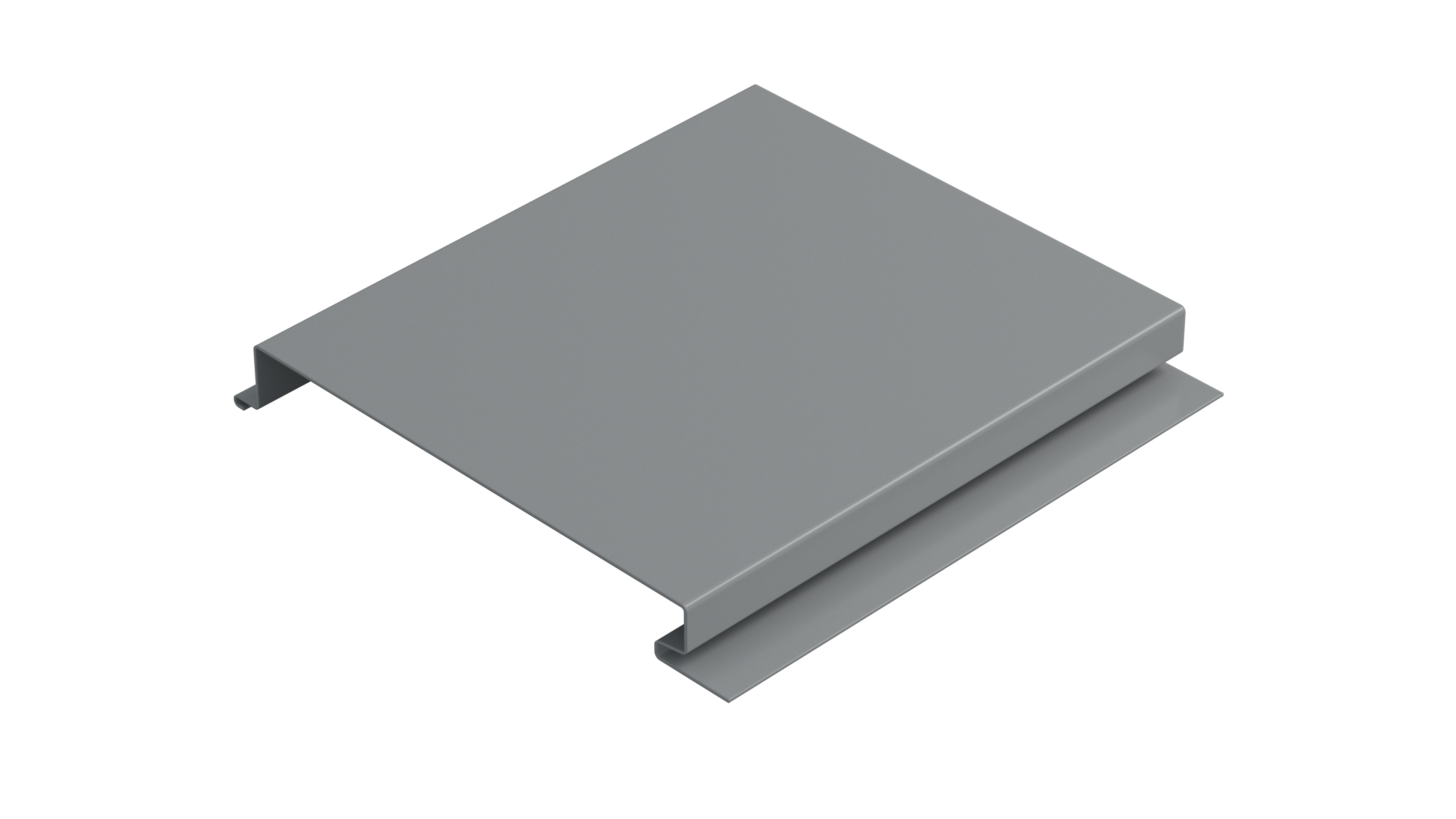

Flush Panel
A concealed fastener panel offering a flat, modern look for a wide range of architectural, commercial, and industrial applications. Suitable for walls, soffits, and fascia.
- Panel Coverage: 12"
- Profile Depth: 1 1/2"
- Thickness: 0.040"
- Weight: 0.62 lb/ft2
- Length Range: 5' - 20'
- Features: Concealed fastening, smooth appearance
- Finish Warranty: Up to 30-years
M-36 Panel
A reliable exposed-fastener panel designed for clean, watertight installations on wall. Built for long-term durability with up to a proven 30-year finish warranty.
- Panel Coverage: 36"
- Rib Pitch: 7.2"
- Profile Depth: 1.5"
- Thickness: 0.040"
- Weight: 0.62 lb/ft2
- Lenght Range: 6' - 45'
- Finish Warranty: Up to 30-years
Industries Served
Reynoclad® profiled aluminum systems are designed to meet the performance and aesthetic demands across a range of sectors:
Sample Request
Are you working with Arconic Architectural Products on your next project? Order product and color samples and explore our products in more detail.

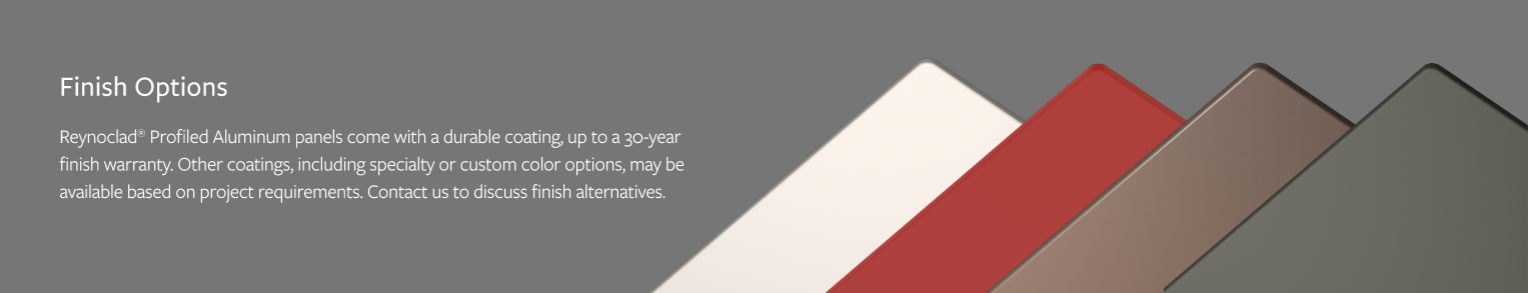

Colors & Finishes
